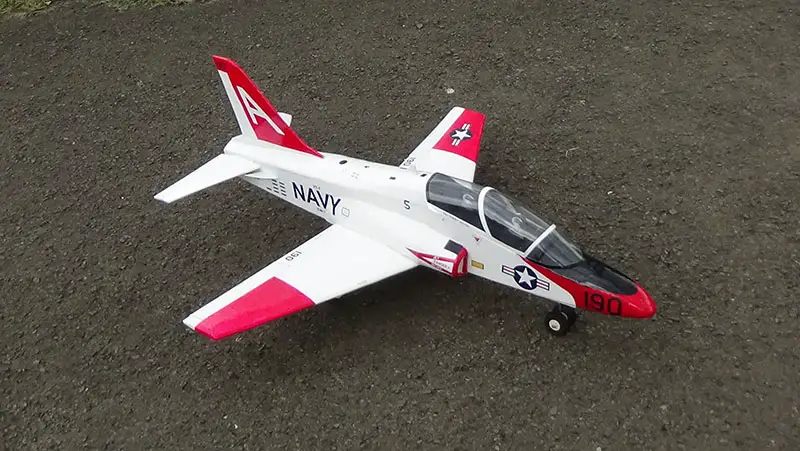

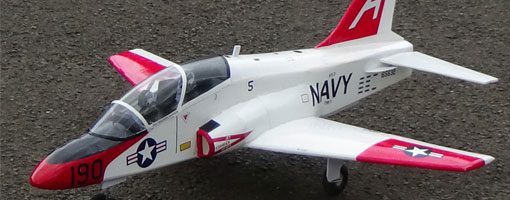

T-45 Goshawk RC Plane Plans

Actually this model was not planned before. I have an ongoing “secret project”, but apparently that project was very hard to make and very time consuming, I need to switch to an alternative project that is quick and simple to build. At first I was going to make a fun-jet, but then again I don’t like a non-scale aircraft, so I switched again to F-8 Crusader. But I remembered that I saw some comments requesting T-45 Goshawk. I’ve done that jet in the past, and it’s simple and also beautiful with “eye catching” color scheme. Finally I pick this T-45 Goshawk. I reduce the size to 800mm in a hope that it will have bigger power. I also make available for 900mm wingspan plans.



Specs :

1. Wingspan 800mm / 31.5 inches

2. Flying weight : 850 grams/ 30 oz

3. Wing loading :68.5 gram/dm2 – 22.5 oz/sq.ft.

4. Wing cube loading : 19.5

5. Wing Area : 12.4 dm2 / 192 sq.in.

6. CG : 11.8 cm from LE



Electronics

– Tested with 2826 2200kv brushless motor with 6X4 propeller

– 2212 motor/ drone race motor

– 40A ESC

– Battery Lipo 3S 2200mah / 1300mah

– 4 plastic gear 9 gram servos (micro servo)



Materials :

1. 5mm  Depron/ Polyfoam

2. 3mm Plywood / PVC foam board

3. 0.5mm Mica Plastic

4. hot glue, UHU glue, CA glue

5. packing tape/ laminating film

Open the PDF file with Adobe Acrobat Reader (recommended software)

PDF security password : none



T-45 Goshawk 800mm RC plans (A4)

T-45 Goshawk 900mm RC plans (A4)

T-45 Goshawk 800mm RC plans (A0)

T-45 Goshawk 900mm RC plans (A0)

T-45 Goshawk 800mm Decal (A3)

T-45 Goshawk 900mm Decal (A3)

Build Video and maiden flight on Youtube
